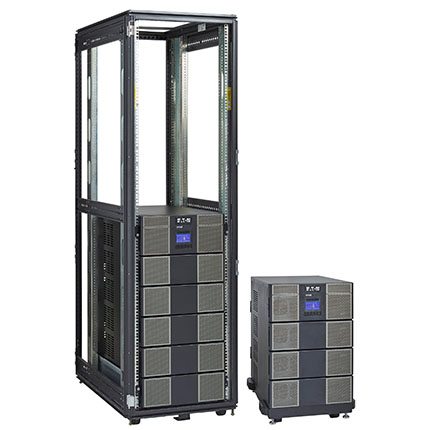

Eaton 9PXM UPS
A scalable, modular, flexible solution for a wide range of applications

9PXM Pre-Configured Systems: Hardware Input and Output Options
9PXM 4 kVA expandable to 16 kVA
Includes: (1) 8-slot enclosure, (1) power module, (2) battery modules, (1) network card
#9PXM8S4K
List Price: $9,279.00
Our Price: $5,642.00
9PXM 8 kVA expandable to 16 kVA
Includes: (1) 8-slot enclosure, (2) power module, (4) battery modules, (1) network card
#9PXM8S8K
List Price: $13,318.00
Our Price: $8,065.00
9PXM 12 kVA expandable to 16 kVA
Includes: (1) 8-slot enclosure, (3) power module, (6) battery modules, (1) network card
#9PXM8S12K
List Price: $17,357.00
Our Price: $10,488.00
9PXM 16 kVA
Includes: (1) 8-slot enclosure, (4) power module, (8) battery modules, (1) network card
#9PXM8S16K
List Price: $21,396.00
Our Price: $12,911.00
9PXM 8 kVA expandable to 20 kVA (N+1)
Includes: (1) 12-slot enclosure, (2) power module, (4) battery modules, (1) network card
#9PXM12S8K
List Price: $13,867.00
Our Price: $8,395.00
9PXM 12 kVA expandable to 20 kVA (N+1)
Includes: (1) 12-slot enclosure, (3) power module, (6) battery modules, (1) network card
#9PXM12S12K
List Price: $17,906.00
Our Price: $10,818.00
9PXM 16 kVA expandable to 20 kVA (N+1)
Includes: (1) 12-slot enclosure, (4) power module, (8) battery modules, (1) network card
#9PXM12S16K
List Price: $21,945.00
Our Price: $13,241.00
9PXM 20 kVA expandable to 20 kVA (N+1)
Includes: (1) 12-slot enclosure, (5) power module, (10) battery modules, (1) network card
#9PXM12S20K
List Price: $25,984.00
Our Price: $15,664.00

More pricing below, click here!

Overview:

The Eaton 9PXM UPS is a scalable, modular, flexible solution that combines the highest level of reliability with the lowest cost of ownership in the 4–20 kVA range. The 9PXM enables you to build a power solution specific to your needs and to expand redundancy and runtime as your needs change.

The plug-and-play power and battery modules are user replaceable so you can add them as needed without a service call or having to put a redundant system in bypass. With its low initial investment, online double-conversion technology, Eaton ABM technology and high efficiency mode, you never have to compromise reliability for efficiency.

Save time and money

Hot-swappable power and battery modules are lightweight, allowing users to replace modules in normal operation mode without a service call.

Eliminate system-level failure

N+X redundancy design provides high reliability and eliminates potential for single-point of failure.

Customize back panel for your output needs

  • Configured-to-order design allows for a range of output options
  • 2 mini-slots for compatible network cards

A versatile UPS

The versatile 9PXM is well suited for both the IT marketplace and for industrial/commercial applications.  The 9PXM’s high power rating, small footprint and easy rack conversion make an ideal solution for an array of data center applications. The design features offer harmonious compatibility with 4-post or high density racks, PDU and network gear for seamless integration into an IT infrastructure.

IT applications include:

  • Small / medium data center
  • Colocation data center
  • Edge data center
  • Network closets

The 9PXM is rugged enough to stand up to mission-critical applications, and it’s small footprint, customizable output options and N+X redundancy are valuable features in the retail, financial and government sectors.

Industrial/commerical applications include:

  • Mission critical operations
    • Small computer rooms
    • Server farms
    • 911 call centers
  • Retail and financial
    • POS equipment
    • Banking automaton software systems
    • Retail back office inventory management systems
  • Government
    • Voice and data networks/closets
    • Government computer rooms
    • School system computer rooms/classrooms

Features:

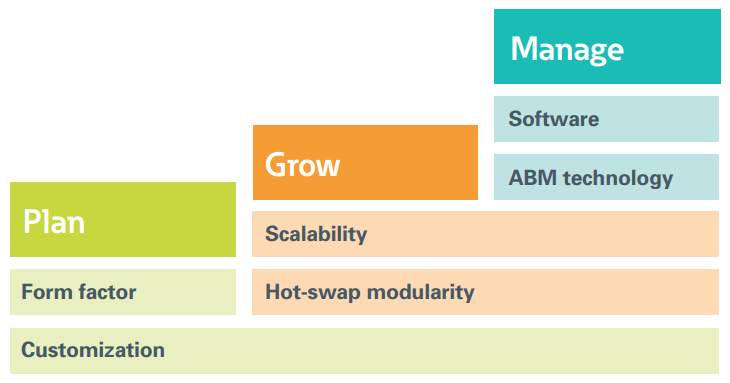

Build a power solution that is specific for your needs.

Build a power solution that is specific for your needs.

Intelligent PowerManager

Automate and control

IPM is an on-site policy-based automation software platform that triggers advanced remediation actions—like shedding non-critical workloads to extend battery runtime—during a power event to ensure that critical equipment remains running as long as possible.

In other words, IPM automatically takes action when it notices something awry—once configuration and action policies are set, IPM does the work. This increases uptime and saves time and money by allowing you to remotely solve power issues.

Visual PowerManager

Monitor IT power infrastructure

VPM excels at remotely monitoring large and distributed deployments of power devices. The easy-to-use, visual interface provides a live floorplan view with alarm notifications for up-to-the-minute health status on your power infrastructure.

Use VPM to better visualize your power infrastructure allowing you to take action as needed to maintain continuous uptime of your critical applications.

Visual Capacity Optimization Manager

Monitor IT and facilities power infrastructure

VCOM, our data center system optimization (DCSO) platform, provides our greatest level of business intelligence by monitoring both IT and facilities power infrastructure which makes it ideal for large or multisite management.

VCOM features capabilities designed to reduce data center operational expenses, improve system and application reliability and mitigate risk through data analysis.

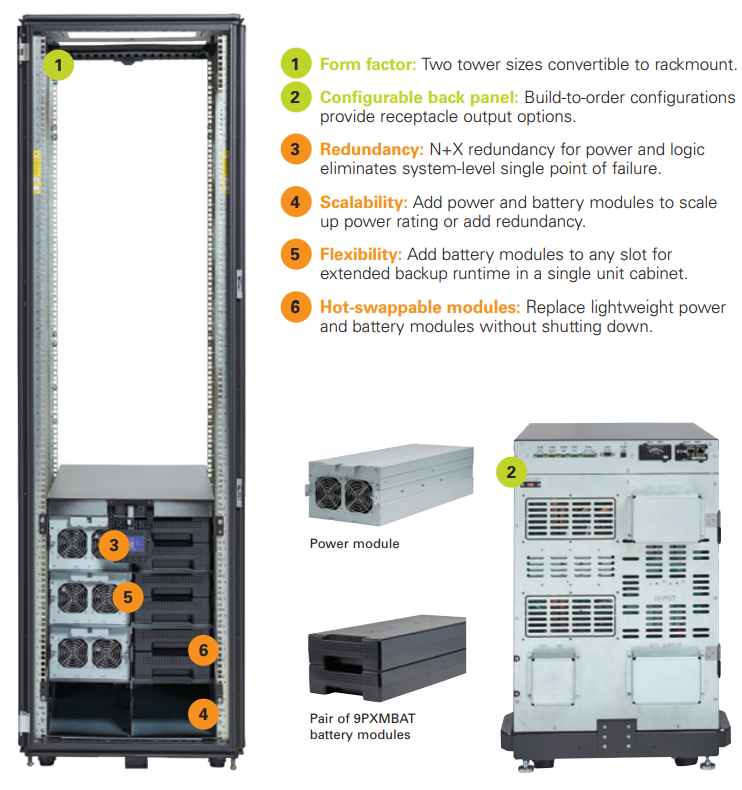

Flexibility for every application

Flexibility for every application

Designing a 9PXM

You can select a configure-to-order (CTO) number to reflect the cabinet form factor and output configurations.
As you select the options needed, they become part of the CTO number. Order power modules, battery modules, external battery cabinets, bypass switches and other external options as separate line items.

Output connection configuration is designated by five digits within the unit CTO number.
These five digits allow selection of the type and quantity for up to a maximum of five different types of receptacles. For hardwired output, use AAAAA for a 12-slot cabinet and AAXXX for an 8-slot cabinet.

  • 8-slot cabinet maximum 2-outlet output panels
  • 12-slot cabinet maximum of 5-outlet output panels
  • Outlet quantities per panel are pre-set
  • Enter desired outlet configuration from bottom to top (digit 9 of the CTO number will be installed in the bottom outlet panel, digit 10 in the panel above it, etc)
  • For an 8-slot cabinet, digits 9–11 will always be XXX (ex: BE XXX)

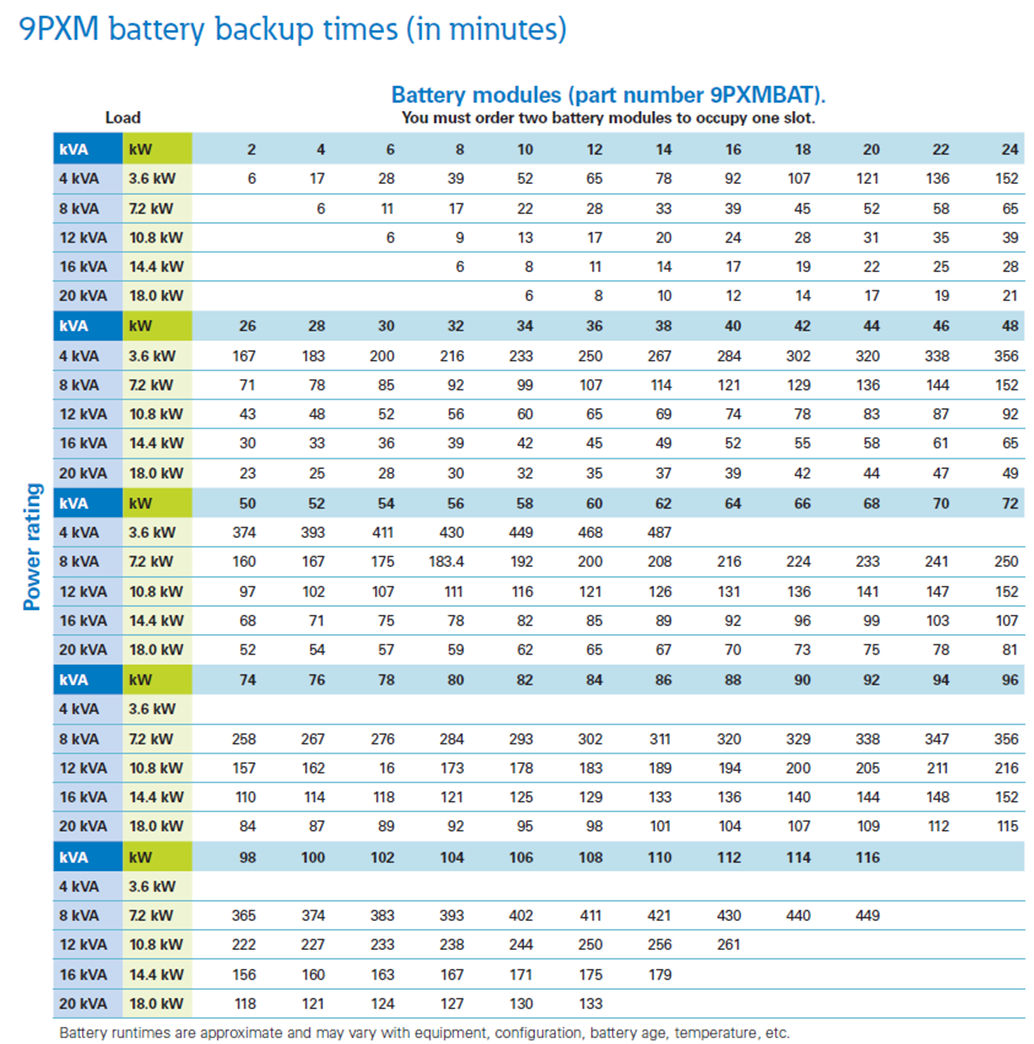

Battery Backup Times:

Battery Backup Times

Documentation:

Download the Eaton 9PXM UPS Brochure (PDF).

Pricing Notes:

9PXM 4 kVA expandable to 16 kVA, Hardwired Input/Output
Includes: (1) 8-slot enclosure, (1) power module, (2) battery modules, (1) network card
#9PXM8S4K
List Price: $9,279.00
Our Price: $5,642.00
9PXM 8 kVA expandable to 16 kVA, Hardwired Input/Output
Includes: (1) 8-slot enclosure, (2) power module, (4) battery modules, (1) network card
#9PXM8S8K
List Price: $13,318.00
Our Price: $8,065.00
9PXM 12 kVA expandable to 16 kVA, Hardwired Input/Output
Includes: (1) 8-slot enclosure, (3) power module, (6) battery modules, (1) network card
#9PXM8S12K
List Price: $17,357.00
Our Price: $10,488.00
9PXM 16 kVA, Hardwired Input/Output
Includes: (1) 8-slot enclosure, (4) power module, (8) battery modules, (1) network card
#9PXM8S16K
List Price: $21,396.00
Our Price: $12,911.00
9PXM 8 kVA expandable to 20 kVA (N+1), Hardwired Input/Output
Includes: (1) 12-slot enclosure, (2) power module, (4) battery modules, (1) network card
#9PXM12S8K
List Price: $13,867.00
Our Price: $8,395.00
9PXM 12 kVA expandable to 20 kVA (N+1), Hardwired Input/Output
Includes: (1) 12-slot enclosure, (3) power module, (6) battery modules, (1) network card
#9PXM12S12K
List Price: $17,906.00
Our Price: $10,818.00
9PXM 16 kVA expandable to 20 kVA (N+1), Hardwired Input/Output
Includes: (1) 12-slot enclosure, (4) power module, (8) battery modules, (1) network card
#9PXM12S16K
List Price: $21,945.00
Our Price: $13,241.00
9PXM 20 kVA expandable to 20 kVA (N+1), Hardwired Input/Output
Includes: (1) 12-slot enclosure, (5) power module, (10) battery modules, (1) network card
#9PXM12S20K
List Price: $25,984.00
Our Price: $15,664.00
9PXM 4 kVA expandable to 16 kVA, Hardwired Input, 4 x NEMA 5-20, 2 x NEMA L6-30
Includes: (1) 8-slot enclosure, (1) power module, (2) battery modules, (1) network card
#9PXM8S4K-PD
List Price: $9,514.00
Our Price: $5,783.00
9PXM 8 kVA expandable to 16 kVA, Hardwired Input, 4 x NEMA 5-20, 2 x NEMA L6-30
Includes: (1) 8-slot enclosure, (2) power module, (4) battery modules, (1) network card
#9PXM8S8K-PD
List Price: $13,553.00
Our Price: $8,206.00
9PXM 12 kVA expandable to 16 kVA, Hardwired Input, 4 x NEMA 5-20, 2 x NEMA L6-30
Includes: (1) 8-slot enclosure, (3) power module, (6) battery modules, (1) network card
#9PXM8S12K-PD
List Price: $17,592.00
Our Price: $10,554.00
9PXM 8 kVA expandable to 20 kVA (N+1), Hardwired Input, 8 x NEMA 5-20, 2 x NEMA L6-20, 2 x NEMA L6-30, 2 x NEMA L14-30
Includes: (1) 12-slot enclosure, (2) power module, (4) battery modules, (1) network card
#9PXM12S8K-PD
List Price: $14,402.00
Our Price: $8,715.00
9PXM 12 kVA expandable to 20 kVA (N+1), Hardwired Input, 8 x NEMA 5-20, 2 x NEMA L6-20, 2 x NEMA L6-30, 2 x NEMA L14-30
Includes: (1) 12-slot enclosure, (3) power module, (6) battery modules, (1) network card
#9PXM12S12K-PD
List Price: $18,441.00
Our Price: $11,138.00
9PXM 16 kVA expandable to 20 kVA (N+1), Hardwired Input, 8 x NEMA 5-20, 2 x NEMA L6-20, 2 x NEMA L6-30, 2 x NEMA L14-30
Includes: (1) 12-slot enclosure, (4) power module, (8) battery modules, (1) network card
#9PXM12S16K-PD
List Price: $22,480.00
Our Price: $13,562.00
9PXM 20 kVA expandable to 20 kVA (N+1), Hardwired Input, 8 x NEMA 5-20, 2 x NEMA L6-20, 2 x NEMA L6-30, 2 x NEMA L14-30
Includes: (1) 12-slot enclosure, (5) power module, (10) battery modules, (1) network card
#9PXM12S20K-PD
List Price: $26,519.00
Our Price: $15,985.00
Split-phase Power Module (120/208, 127/220, 110/220, 120/240V In & Out)
#9PXMSPPM
List Price: $2,989.00
Our Price: $1,793.00
Battery Module (two required per slot/string)
#9PXMBAT
List Price: $525.00
Our Price: $322.00
Optional 20 Amp Charger Module (same form factor as 4 kVA power modules)
#9PXMCHGR
List Price: $2,520.00
Our Price: $1,815.00
8-slot enclosure (4, 8, 12 or 16 kVA), Hardwired Input/Output
#9PXM08AAXXX
List Price: $4,911.00
Our Price: $2,980.00
12-slot enclosure (4, 8, 12, 16 or 20 kVA), Hardwired Input/Output
#9PXM12AAAAA
List Price: $5,460.00
Our Price: $3,326.00
Rack Kit (same for 8 and 12-slot UPS's & EBC's)
#9PXMRK
List Price: $549.00
Our Price: $336.00
Floor Anchoring kit
#9PXMFAK
List Price: $328.00
Our Price: $197.00
12-slot external battery enclosure: black
#9PXM12SEBM
List Price: $5,250.00
Our Price: $3,200.00
Network Card-MS
Provides real time monitoring and control across UPSs in your network
#Network-MS
List Price: $329.00
Our Price: $247.00
Relay Card - MS
Enables automatic shutdown and network monitoring of a UPS system
#Relay-MS
List Price: $111.00
Our Price: $83.00
Bypass Power Module - Hardwired Input/Output
#BPM125HW
List Price: $2,001.00
Our Price: $1,200.00
Bypass Power Module - Hardwired Input/(6) L14-30R + Hardwired
#BPM125AR
List Price: $2,952.00
Our Price: $1,771.00
Bypass Power Module - Hardwired Input/(3) L14-30R + (3) L6-20R + Hardwired
#BPM125BR
List Price: $2,952.00
Our Price: $1,771.00
Bypass Power Module - Hardwired Input/(3) L14-30R + (6) C19 + Hardwired
#BPM125CR
List Price: $2,952.00
Our Price: $1,771.00
Bypass Power Module - Hardwired Input/(3) L14-30R + (6) 5-20R + Hardwired
#BPM125DR
List Price: $2,952.00
Our Price: $1,771.00
Bypass Power Module - Hardwired Input/(3) L6-30R + (6) 5-20R + Hardwired
#BPM125ER
List Price: $2,952.00
Our Price: $1,771.00
Bypass Power Module - Hardwired Input/(6) L6-30R + Hardwired
#BPM125FR
List Price: $2,952.00
Our Price: $1,771.00
