Overview:
Eaton Monitored ePDUs provide remote monitoring of the current draw of individual sections via Ethernet or Serial communication. This capability, combined with state-of-the-art software allows you to aggregate the information from hundreds of ePDUs in one location. All Monitored ePDUs also include the Easy-Read digital LED ammeter for easy start-up and provisioning of servers.
Eaton Monitored ePDUs - Features- High density units support up to 25 1U/2U servers or three blade server chassis
- Easy read digital ammeter reduces local monitoring time
- Clearly labeled circuits simplify load balancing
- Reading available via Ethernet connection over a network
- UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements
ePDU technologies
Eaton's ePDU technologies satisfy the demand of every data center. Eaton ePDUs offer single and dual chassis, five technology options, the broadest power range in the market and the ability to manufacture custom ePDUs. They also offer an arrangement of outlets (number and type) for every region.
Eaton ePDUs are distinguished for their quality, dependability and versatility. All products are designed for a specific application with an emphasis on safety and reliability. The Eaton line includes an extensive range of vertical, zero 0U products, which do not occupy server space in racks, as well as 1U and 2U formats. Environmental monitoring options are also available.
| Feature | Basic (BA) | Monitored Network (MI) |
Advanced Monitored (AM) |
Switched (SW) |
Automatic Transfer (AT) |
| Rugged Construction |  |
|
|
|
|
| Horizontal Products | |
|
|
|
|
| Vertical Products | |
|
|
|
|
| Local Current Display | |
|
|
||
| Current Monitoring Type | Section | Outlet | Section | ||
| Voltage Monitoring | |
||||
| Serial Interface | |
||||
| Ethernet Interface | |
|
|
||
| Environmental Sensors | * |
|
|
*Available on some models

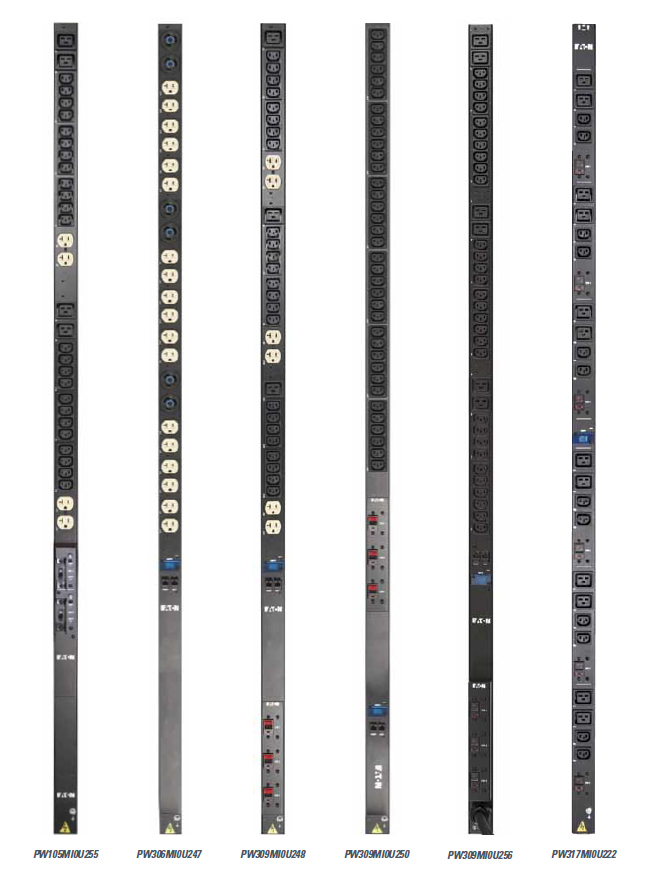

Monitored ePDUs - 0U:
Eaton Monitored ePDUs all users to remotely monitor the current draw of the unit and individual sections.
| Catalog Number | Input Plug | Breaker | Max kW | Function | Cord (ft) |
Orientation | Receptacles | Dimensions (H x W x D, in) |
| PW101MI0U233 | 5-15P | None | 1.44 | MI | 9 | 0U | (24) 5-15R | 66 x 2.0 x 1.89 |
| PW102MI0U234 | 5-20P | None | 1.92 | MI | 9 | 0U | (24) 5-20R | 66 x 2.0 x 1.89 |
| PW102MI0U235 | L5-20P | None | 1.92 | MI | 9 | 0U | (24) 5-20R | 66 x 2.0 x 1.89 |
| PW103MI0U236 | L5-30P | (2) 15A | 2.88 | MI | 9 | 0U | (24) 5-15R | 66 x 2.0 x 1.89 |
| PW103MI0U238 | L6-20P | None | 3.33 | MI | 9 | 0U | (24) C13 (4) C19 | 66 x 2.0 x 1.89 |
| PW105MI0U240 | L6-30P | (2) 20A | 4.99 | MI | 9 | 0U | (24) C13 (4) C19 | 66 x 2.0 x 1.89 |
| PW105MI0U255 | L14-30P | (2) 20A | 4.99 | MI | 9 | 0U | (24) C13 (4) C19(4) 5-20R | 66 x 2.0 x 1.89 |
| PW306MI0U242* | L21-20P | None | 5.76 | MI | 9 | 0U | (30) 5-20R | 66 x 2.0 x 1.89 |
| PW306MI0U243* | L21-20P | None | 5.76 | MI | 9 | 0U | (24) C13 (3) C19(6) 5-20R | 66 x 2.0 x 1.89 |
| PW306MI0U408* | L21-20P | None | 5.76 | MI | 9 | 0U | (30) 5-15R | 66 x 2.0 x 1.89 |
| PW306MI0U245* | L21-20 | P None | 5.76 | MI | 9 | 0U | (36) C13 (6) C19 | 66 x 2.0 x 1.89 |
| PW306MI0U247* | L21-20P | None | 5.76 | MI | 9 | 0U | (18) 5-20R(6) L6-20R | 66 x 2.0 x 1.89 |
| PW306MI0U416* | L21-20P | None | 5.76 | MI | 10 | 0U | (42) C13 | 66 x 2.0 x 1.89 |
| PW309MI0U248* | L21-30P | (3) 20A | 8.64 | MI | 9 | 0U | (24) C13 (3) C19(6) 5-20R | 66 x 2.0 x 1.89 |
| PW309MI0U250* | L21-30P | (3) 15A | 8.64 | MI | 9 | 0U | (36) C13 | 66 x 2.0 x 1.89 |
| PW309MI0U256* | L21-30P | (3) 20A | 8.64 | MI | 9 | 0U | (30) C13 (6) C19 | 66 x 2.0 x 1.89 |
| PW314MI0U252* | CS8365P | (2) 20A(1) 30A | 14.4 | MI | 9 | 0U | (24) C13 (4) C19(2) L6-30R | 66 x 2.0 x 1.89 |
| PW314MI0U254* | CS8365P | (3) 20A | 14.4 | MI | 9 | 0U | (30) C13 (6) C19 | 66 x 2.0 x 1.89 |
| PW317MI0U222* | IEC 60309 460P9W | (6) 20A | 17.3 | MI | 7 | 0U | (12) C13 (12) C19 | 66 x 4 .0 x 1.89 |
| VPC2864-3861* | IEC309 516P6W | None | 14.4 | MI | 9 | 0U | (30) C13 (6) C19 | 66 x 2 x 1.83 |
| VPC2864-3862* | IEC309 532P6W | (3) 20A | 14.4 | MI | 9 | 0U | (30) C13 (6) C19 | 66 x 2 x 1.83 |
*These units have available temperature monitoring

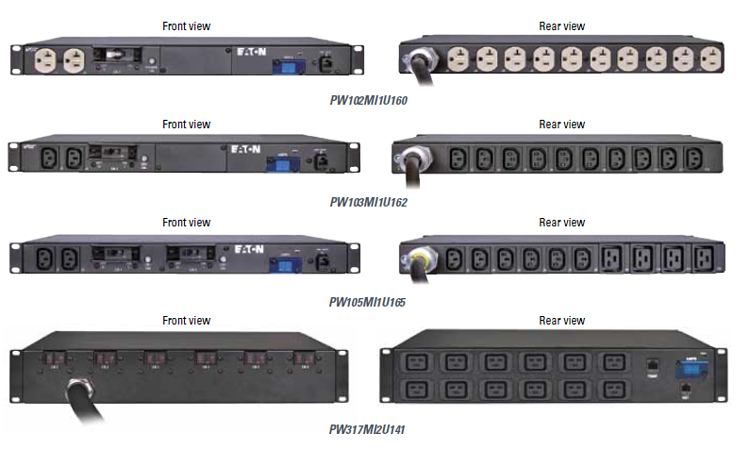

Monitored ePDUs - 1U/2U:
Hot Swap MBPs enable easy UPS replacement without interruption to the connected load. Placing the HotSwap MBP in bypass mode provides utility power to equipment while the UPS is being serviced.
| Catalog Number | Input Plug | Breaker | Max kW | Function | Cord(ft) | Orientation | Receptacles | Dimensions(H x W x D in) |
| PW101MI1U221 | 5-15P | (1) 15A | 1.44 | MI | 9 | 1U | (12) 5-15R | 1.75 x 19 x 7 |
| PW101MI1U403 | 5-20P | (1) 20A | 1.92 | MI | 9 | 1U | (12) 5-20R | 1.75 x 19 x 7 |

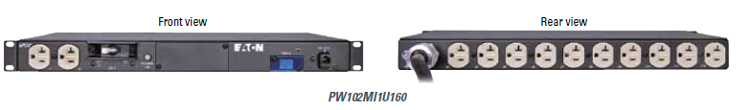

| PW102MI1U160 | L5-20P | (1) 20A | 1.92 | MI | 9 | 1U | (12) 5-20R | 1.75 x 19 x 7 |
| PW103MI1U161 | L5-30P | (2) 20A | 2.88 | MI | 9 | 1U | (12) 5-20R | 1.75 x 19 x 7 |
| PW103MI1U162 | L6-20P | (1) 20A | 3.33 | MI | 9 | 1U | (12) C13 | 1.75 x 19 x 7 |
| PW105MI1U164 | L6-30P | (2) 15A | 4.99 | MI | 9 | 1U | (12) C13 | 1.75 x 19 x 7 |
| PW105MI1U165 | L6-30P | (2) 15A | 4.99 | MI | 9 | 1U | (8) C13 (4) C19 | 1.75 x 19 x 7 |
| PW105MI2U402 | L6-30P | (2) 20A | 4.99 | MI | 15 | 2U | (20) C13 | 3.44 x 19 x 7 |
| PW317MI2U141 | IEC 60309 460P9W | (6) 20A | 17.29 | MI | 10 | 2U | (12) C19 | 3.5 x 19 x 13.5 |
Specifications:
| Product Snapshot | |
|---|---|
| Power Range | 1.4kW to 10+kW |
| Input Voltage | 100 to 240V |
| Function | Monitored Network (MI) |
| ePDU Models | ||||
|---|---|---|---|---|
| Part Number | Style Number | Function | Input Plug | Output Receptacles |
| ePDU Models | ||||
| PW101MI0U233 | V70NA1-N-SS-109 | MI | 5-15P | (24) 5-15R |
| PW101MI1U221 | T982A1-N-SS-109 | MI | 5-15P | (12) 5-15R |
| PW101MI1U403 | T982A2-F-SS-109 | MI | 5-20P | (12) 5-20R |
| PW102MI0U234 | V70NA2-N-SS-109 | MI | 5-20P | (24) 5-20R |
| PW102MI0U235 | V70NA2-N-SL-109 | MI | L5-20P | (24) 5-20R |
| PW102MI1U160 | T982A2-N-SL-109 | MI | L5-20P | (12) 5-20R |
| PW103MI0U236 | V70BC1-N-SL-109 | MI | L5-30P | (24) 5-15R |
| PW103MI0U238 | V70NB4-N-SL-109 | MI | L6-20P | (24) C13, (4) C19 |
| PW103MI1U161 | T982C2-N-SL-109 | MI | L5-30P | (12) 5-20R |
| PW103MI1U162 | T982B3-N-SL-109 | MI | L6-20P | (12) C13 |
| PW105MI0U240 | V70BF5-N-SL-109 | MI | L6-30P | (24) C13, (4) C19 |
| PW105MI0U255 | V70BJ3-N-SL-109 | MI | L14-30P | (4) 5-20R, (24) C13, (4) C19 |
| PW105MI1U164 | T982F3-N-SL-109 | MI | L6-30P | (12) C13 |
| PW105MI1U165 | T982F4-N-SL-109 | MI | L6-30P | (8) C13, (4) C19 |
| PW105MI2U402 | PC3783 | MI | L6-30P | (20) C13 |
| PW306MI0U242 | VPC2864-A2-3847 | MI | L21-20P | (30) 5-20R |
| PW306MI0U243 | VPC2864-3848 | MI | L21-20P | (6) 5-20R, (24) C13, (3) C19 |
| PW306MI0U245 | VPC2864-3851 | MI | L21-20P | (36) C13, (6) C19 |
| PW306MI0U247 | VPC2864-3857 | MI | L21-20P | (18) 5-20R, (6) L6-20R |
| PW306MI0U408 | VPC_2864_A1 | MI | L21-20P | (30) 5-15R |
| PW306MI0U416 | VPC2864-3436 | MI | L21-20P | (42) C13 |
| PW309MI0U248 | VPC2864-3849 | MI | L21-30P | (6) 5-20R, (24) C13, (3) C19 |
| PW309MI0U256 | VPC2864-3852 | MI | L21-30P | (30) C13, (6) C19 |
| PW314MI0U252 | VPC2864-3859 | MI | CS8365 | (2) L6-30R, (24) C13, (4) C19 |
| PW314MI0U254 | VPC2864-3854 | MI | CS8365 | (30) C13, (6) C19 |
| PW317MI0U222 | VPC3690 | MI | 309-460P9W | (12) C13, (12) C19 |
Documentation:
Download the Eaton ePDU Data Center Catalog (PDF).
Download the Eaton Flex and Hotswap MBP ePDU Brochure Nov 2011 (PDF).
