Eaton FlexPDU & HotSwap MBP
Designed for reliable and cost-effective power distribution.

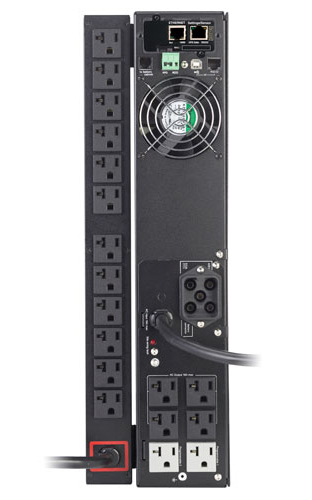

9130 with FlexPDU

Eaton Products
ePDU Models
Eaton ePDU, 1U, Basic, input C20, output (12) C13, (1) C19 #EFLXI3000R-PDU1UIEC
List Price: $157.00
Our Price: $121.00
Eaton ePDU, 1U, Basic, input 5-15P, output (12) 5-15R, (1) C19 #EFLXL1500R-PDU1U
List Price: $94.00
Our Price: $76.00
Eaton ePDU, 1U, Basic, input 5-20P, output (12) 5-20R #EFLXL2000R-PDU1U
List Price: $104.00
Our Price: $84.00
Eaton ePDU, 1U, Basic, input 5-20P, output (5) L5-20R #EFLXL2000R-PDU1UL
List Price: $136.00
Our Price: $108.00
Eaton ePDU, 1U, Basic, input 5-15P, output (6) 5-15R #EHBPL1500R-PDU1U
List Price: $242.00
Our Price: $187.00
Eaton ePDU, 1U, Basic, input 5-20P, output (6) 5-20R #EHBPL2000R-PDU1U
List Price: $289.00
Our Price: $223.00
Eaton ePDU, 1U, Basic, input L5-30P, output (5) 5-20R #EHBPL3000R-PDU1U
List Price: $420.00
Our Price: $324.00

Click here to jump to more pricing!

Overview:

Eaton provides five different functions for rack power distribution solutions. Two of these functions, FlexPDU and Maintenances Bypass PDU, were created as accessories specific to some of our UPSs. Both of these units offer the flexibility of connections to meet the demanding requirements of today's data center architects.

The HotSwap Maintenance Bypass (MBP) unit enables easy UPS replacement without interruption of the load. The HotSwap MBP is ideal when exchanging a unit or servicing a UPS. For added convenience, the HotSwap MBP offers two types of receptacles: 5-15R or 5-20R. The FlexPDU is a basic function power distribution unit with a short power cord for easy, close mounting. FlexPDUs are available with 5-15R, 5-20R or L5-20R output receptacles, for connection to a wide range of equipment.

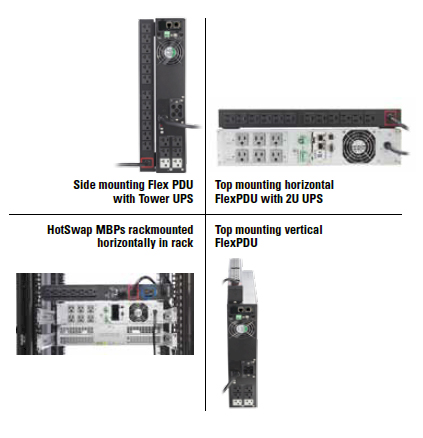

Both of these options allow for easy deployment, even in space-constrained environments. You have a variety of mounting options, including top and side mounting.

Features

  • HotSwap MBP provides service continuity during UPS maintenance or upgrade
  • Both units offer connections to all types of equipment
  • Eases installation with flexible mounting options
  • Minimal depth accommodates most space constraints

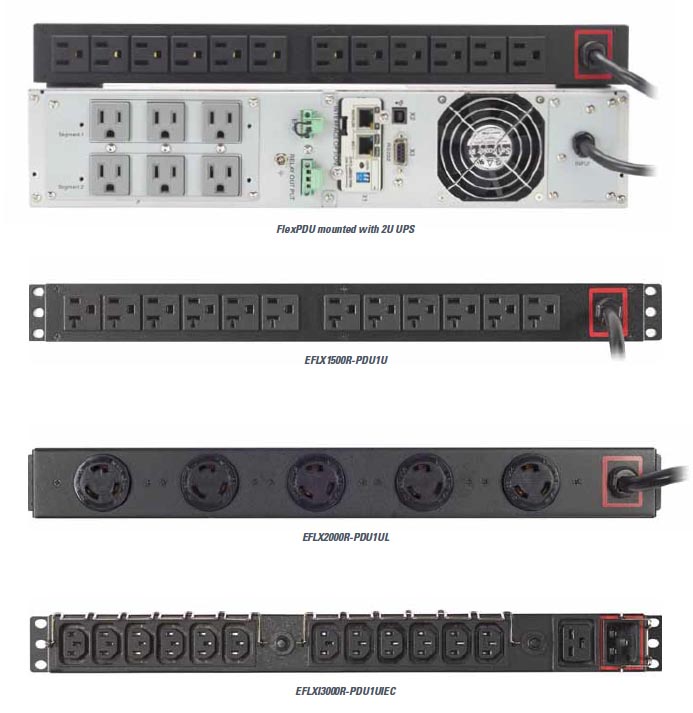

FlexPDU

FlexPDUs:

Eaton FlexPDUs increase power distribution from a single UPS.

  • 3 foot cord allows easy connection close to UPS without cable clutter
  • Mounting bracket attaches directly to UPS
  • Mounting bracket allows for vertical, 1U or UPS attachment



Catalog Number Input Plug Breaker Max kW Function Cord
(ft)
Orientation Receptacles Dimensions
(H x W x D, in)
EFLX1500R-PDU1U 5-15P None 1.44 BA 3 1U (12) 5-15R (1) C19 1.7 x 17.3 x 2.3
EFLX2000R-PDU1U 5-20P None 1.92 BA 3 1U (12) 5-20R 1.7 x 17.3 x 2.3
EFLX2000R-PDU1UL 5-20P None 1.92 BA 3 1U (5) L5-20R 2.0 x 17.3 x 3.0
EFLXI3000R-PDU1UIEC C20 Inlet (2) 20A 3.33 BA 3 1U (12) C13 (1) C19 1.7 x 17.3 x 2.3

FlexPDU

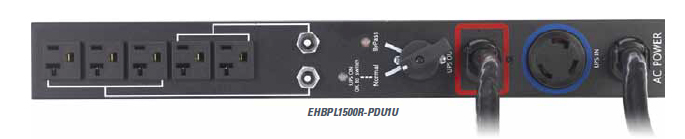

Hot Swap Maintenance Bypass:

Hot Swap MBPs enable easy UPS replacement without interruption to the connected load. Placing the HotSwap MBP in bypass mode provides utility power to equipment while the UPS is being serviced.

Catalog Number Input Plug Breaker Max kW Function Cord(ft) Orientation Receptacles Dimensions(H x W x D in)
EHBPL1500R-PDU1U 5-15P None 1.44 BA 8 2U (6) 5-15R 2.1 x 17.3 x 3.8
EHBPL2000R-PDU1U 5-20P None 1.92 BA 8 2U (6) 5-15R 2.1 x 17.3 x 3.8
EHBPL3000R-PDU1U L5-30P (2) 20A 2.88 BA 3.3 2U (5) 5-20R 2.1 x 17.3 x 3.8

Hot Swap Maintenance Bypass

Specifications:



Product Snapshot
Power Range 1.44kW to 3.33 kW
Input Voltage 100 to 240 V
Function Basic (BA)

ePDU Models
Part Number Style Number Function Input Plug Output Receptacles
EFLXI3000R-PDU1UIEC 68438 BA C20 (12) C13, (1) C19
EFLXL1500R-PDU1U 58015 BA 5-15P (12) 5-15R, (1) C19
EFLXL2000R-PDU1U 58020 BA 5-20P (12) 5-20R
EFLXL2000R-PDU1UL 58021 BA 5-20P (5) L5-20R
EHBPL1500R-PDU1U 58115 BA 5-15P (6) 5-15R
EHBPL2000R-PDU1U 58120 BA 5-20P (6) 5-20R
EHBPL3000R-PDU1U 58130 BA L5-30P (5) 5-20R

Documentation:

PDF File
Download the Eaton ePDU Data Center Catalog (PDF).

PDF File
Download the Eaton Flex and Hotswap MBP ePDU Brochure Nov 2011 (PDF).
