Eaton 9SX Series UPS
High performance Online double-conversion UPS

Eaton 9SX Series UPS

9SX Series UPS
9SX 120V Tower
9SX 700 120V TOWER
#9SX700
List Price: $964.00
Our Price: $628.38
9SX 1000 120V TOWER
#9SX1000
List Price: $1,246.00
Our Price: $789.39
9SX 1500 120V TOWER
#9SX1500
List Price: $1,733.00
Our Price: $1,097.56
9SX 2000 120V TOWER
#9SX2000
List Price: $2,167.00
Our Price: $1,411.75
9SX 3000 120V TOWER
#9SX3000
List Price: $3,443.00
Our Price: $2,304.88
9SX 3000 120V TOWER
#9SX3000HW
List Price: $3,443.00
Our Price: $2,304.88

More pricing below, click here!

Overview:

Performance and Efficiency

  • Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.
  • With up to 95% efficiency in online double-conversion mode the 9SX provides the highest efficiency level in its class to reduce energy & cooling costs.
  • With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors

Availability and Flexibility

  • The internal bypass allows service continuity in case of internal fault. Batteries are hot-swappable from the front panel without powering down critical systems.
  • With its tower or rack/tower versatile form factor the 9SX can be installed in any environment (rack kit provided as standard on RT versions).
  • Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%.
  • More runtime can be added with external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.

Manageability

  • The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen (in seven languages). LCD display position can be adjusted to offer the best viewable angle for tower and rack usage.
  • The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software Suite.
  • Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices. It can also be used to remotely reboot locked-up equipment or to manage scheduled shutdowns and sequential start-ups.
  • The 9SX offers Serial, USB and relay (dry contacts) connectivity, plus an extra slot for an optional card (Modbus, Network or Relay). 9SX also provides Remote Power off function. Eaton’s Intelligent Power Software is included with each UPS.

Specifications:

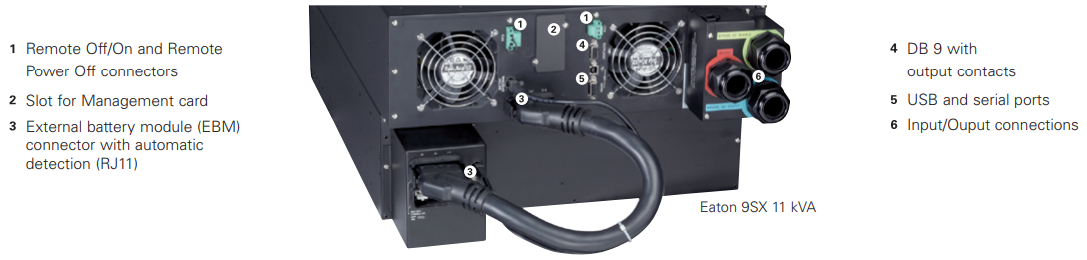

diagram

9SX Model Overview:

5 kVA 6 kVA 8 kVA 11 kVA
Rating (kVA/kW) 5 kVA/4.5 kW 6 kVA/5.4 kW 8 kVA/7.2 kW 11 kVA/10 kW
Format Tower or RT (Rack/Tower) Tower or RT (Rack/Tower) RT (Rack/Tower) RT (Rack/Tower)
Electrical characteristics
Technology On-line double-conversion with Power Factor Correction (PFC) system
Nominal voltage 200/208/220/230/240 V 200/208/220/230/240 V/250 V
Input voltage range 176-276V without derating (RT models: 100-276V with derating, Tower models: 120-276V with derating)
Input frequency range 40-70 Hz, 50/60 Hz autoselection, frequency converter as standard
Efficiency Up to 94% in Online mode, 98% in Hi-Efficiency mode Up to 95% in Online mode, 98% in Hi-Efficiency mode
Crest factor/short circuit current 3:1/90 A 3:1/90 A 3:1/120 A 3:1/150 A
Overload capacity Tower models: 102-110% : 120s, 110-125%: 60s, 125-150%: 10s, >150%: 500ms
RT models: 102-130% : 120s, 130-150%: 30s, 125-150%: 10s, >150%: 100ms
102–110% : 120 s, 110–125%: 60 s, 125–150%: 10 s, >150%: 900 ms
Connections
Input Terminal block (up to 10 mm2) Terminal block (up to 16 mm2)
Outputs Tower models: Terminal block
RT models: : Terminal block + 2 controlled groups of 4 IEC C13 (10A) + 2 IEC C19 (16A)
Terminal block
Batteries
Typical backup times at 50 and 70% load*
9SX Tower: 30/19 min RT: 13/10 min Tower: 24/15 min RT: 11/8 min 15/10 min 9/5 min
9SX + 1 EBM Tower: 120/70 min, RT: 60/40 min Tower: 90/57 min RT: 48/34 min 38/25 min 22/15 min
9SX + 4 EBM Tower : 485/275 min, RT: 220/150 min Tower: 385/220 min, RT: 170/120 min 120/82 min 80/55 min
Battery management ABM® & Temperature compensated charging method , Automatic battery test, deep discharge protection, automatic recognition of external battery units
Communication
Communication ports USB and Serial ports (cannot be used simultaneously), Dry contact, 1 Remote Power Off (all models), 1 Remote On/Off (RT format models)
1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Operating conditions, standards and approvals
Operating temperature 0 to 40°C continuous
Typical noise level <46dB <46dB <48dB <50dB
Safety IEC/EN 62040-1, UL 1778 & CSA 22.2 (5 & 6kVA RT only)
EMC, performance IEC/EN 62040 -2 , IEC/EN 62040-3
Approvals CE, CB report (TUV), UL (5 & 6kVA RT only)
Dimensions H x W x D/Weight
UPS Tower: 575x244x542mm/65.5kg, RT: 440(19’’)x130(3U)x685mm/48kg 440(19’’)*260(6U)*700mm/84kg 440(19 ’’)x260(6U)x700 mm/86 kg
EBM Tower: 575x244x542mm/104,9kg, RT: 440(19’’)x130(3U)x645mm/68kg 440(19’’)*130(3U)*680mm/65kg 440(19 ’’)x130(3U)x680 mm/65 kg
440(19 ’’)x130(3U)x700 mm/19 kg 440(19 ’’)x130(3U)x700 mm/21 kg
Customer service and support
Warranty 2 years warranty

* For 8 & 11 kVA UPS: Power Module + EBM

Documentation:

Download the Eaton 9SX Series UPS Brochure (PDF).

Pricing Notes:

Eaton 9SX Series UPS
9SX 120V Tower
9SX 700 120V TOWER
#9SX700
List Price: $964.00
Our Price: $628.38
9SX 1000 120V TOWER
#9SX1000
List Price: $1,246.00
Our Price: $789.39
9SX 1500 120V TOWER
#9SX1500
List Price: $1,733.00
Our Price: $1,097.56
9SX 2000 120V TOWER
#9SX2000
List Price: $2,167.00
Our Price: $1,411.75
9SX 3000 120V TOWER
#9SX3000
List Price: $3,443.00
Our Price: $2,304.88
9SX 3000 120V TOWER
#9SX3000HW
List Price: $3,443.00
Our Price: $2,304.88
Eaton 9SX Tower EBM
Eaton 9SX 1000 Tower EBM
#9SXEBM36T
Our Price: $699.00
Eaton 9SX 1500 Tower EBM
#9SXEBM48T
Our Price: $817.00
Eaton 9SX 2000/3000 Tower EBM
#9SXEBM96T
Our Price: $997.00
Accessories
9SX 1000 EBM 6ft extension cable
#EBMCBL36T
List Price: $119.00
Our Price: $77.81
9SX 1500 EBM 6ft extension cable
#EBMCBL48T
List Price: $119.00
Our Price: $68.76
9SX 3000 EBM 6ft extension cable
#EBMCBL96T
List Price: $119.00
Our Price: $77.81
Adapter cable from Eaton 9SX UPS/EBM to Eaton 9130 1000VA UPS/EBM models
#CBLADAPT36T
List Price: $112.00
Our Price: $72.96
Adapter cable from Eaton 9SX UPS/EBM to Eaton 9130 1500VA UPS/EBM models
#CBLADAPT48T
List Price: $112.00
Our Price: $72.96
Adapter cable from Eaton 9SX UPS/EBM to Eaton 9130 2/3 kVA UPS/EBM models
#CBLADAPT96T
List Price: $112.00
Our Price: $72.96
