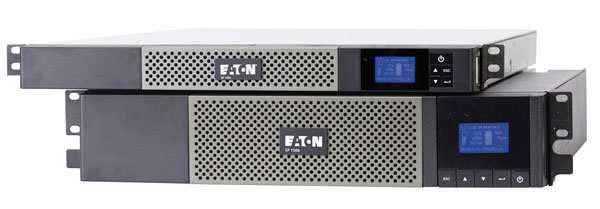

Eaton 5P Rackmount Models UPS
Enterprise class battery backup for network closets and small data centers.

main

5P Rackmount Models UPS Models
5P 1440 VA Tower/Rack Mountable UPS
1.44 kVA/1.44 kW - 2UTower/Rack Mountable 0.05 Hour, 0.18 Hour Full Load, Half Load - 8 x NEMA 5-15R
#5P1500RT
List Price: $1,134.00
Our Price: $670.00
5P 1950 VA Tower/Rack Mountable UPS
1.95 kVA/1.92 kW - 2UTower/Rack Mountable 0.05 Hour, 0.15 Hour Full Load, Half Load - 8 x NEMA 5-20R
#5P2200RT
List Price: $1,732.00
Our Price: $1,023.00
5P 3000 VA Tower/Rack Mountable UPS
3 kVA/2.70 kW - 2UTower/Rack Mountable 0.07 Hour, 0.17 Hour Full Load, Half Load - 6 x NEMA 5-20R, 1 x NEMA L5-30R
#5P3000RT
List Price: $2,074.00
Our Price: $1,218.00

More pricing below, click here!

Overview:

The Eaton 5P Rackmount UPS delivers reliable enterprise class backup power with an efficiency rating of up to 99%. With ENERGY STAR® qualified models, the 5P's graphical LCD display allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Intelligent Power Software Suite, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.

Features

  • Flexibility:

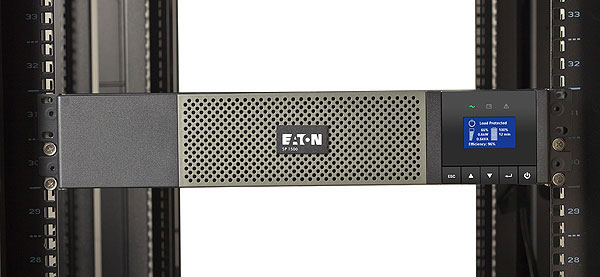

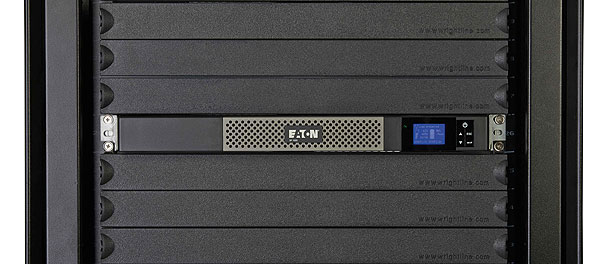

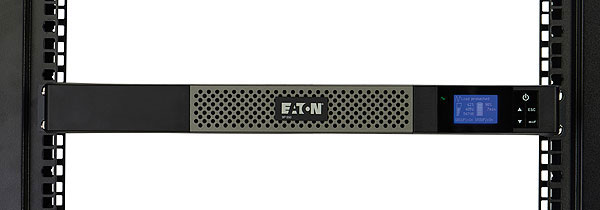

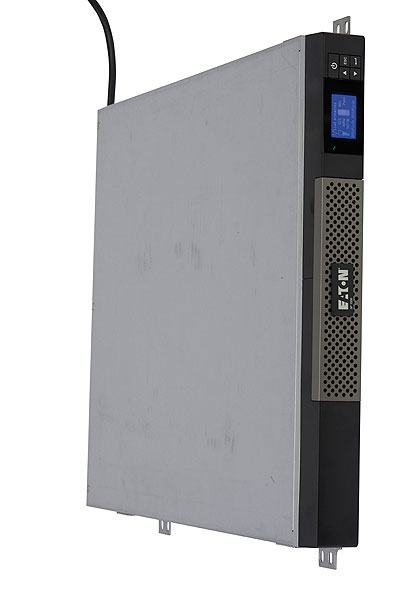

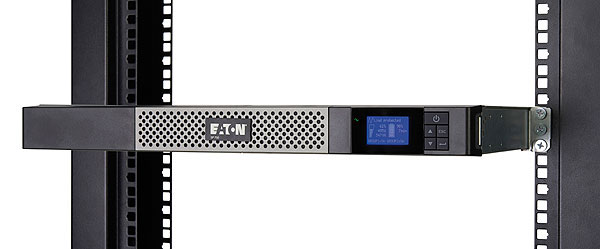

    The Eaton 5P is available in space saving 1U and 2U rackmount configurations.
  • Efficiency:
    The 5P provides industry leading efficiency of up to 99 percent.
  • Manageability:
    • UPS management:
      By integrating Eaton's free Intelligent Power® Software Suite, you can monitor and manage the power devices on your network.
    • Energy metering:
      The 5P meters energy consumption at the UPS level.

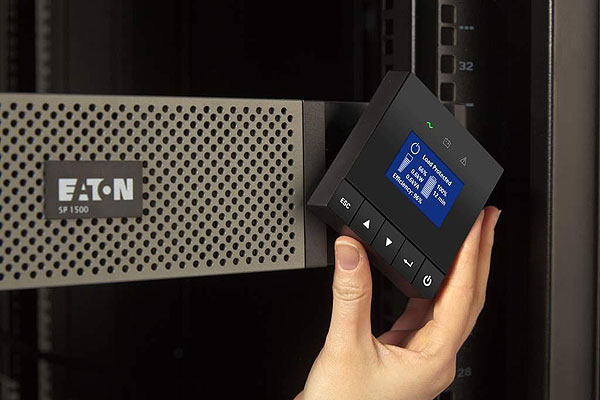

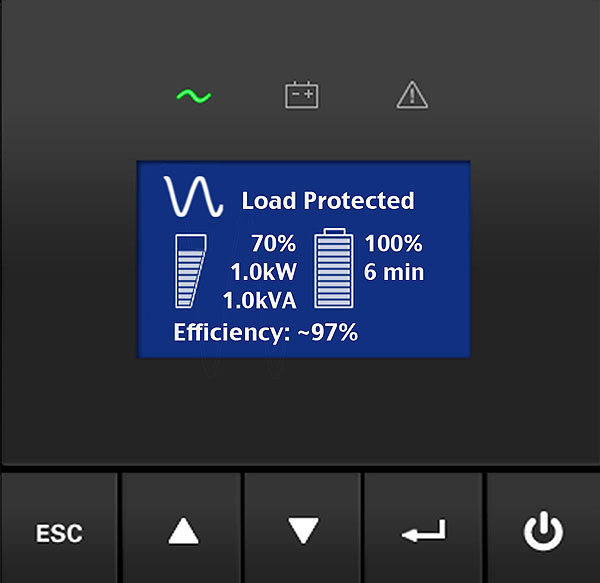

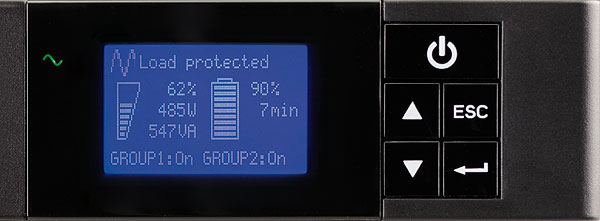

  • LCD display:
    Eaton's next-generation LCD offers a graphical interface which provides all critical UPS information in a single screen view.
  • More power:
    The 5P protects more devices by providing 20 percent more wattage compared to traditional UPSs.

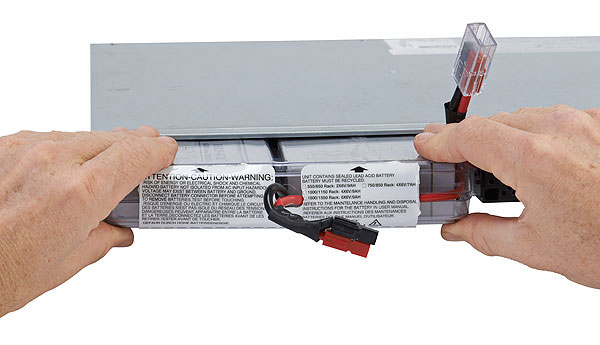

  • Battery life:
    Eaton's exclusive ABM® technology increases battery service life by 50 percent.
  • ENERGY STAR®:
    5P 2U rackmount models are ENERGY STAR® qualified. ENERGY STAR helps consumers save money and protect the environment through energy efficient products and practices

Intelligent Power Software Suite

By integrating the software with the Eaton 5P, you can:

  • Seamlessly integrate with VMware's vCenter Server™ virtualization management solution, as well as virtualization platforms such as Citrix® XenServer, Microsoft SCVMM™, Red Hat® and other Xen® open source platforms.
  • Initiate live migration of virtual machines (VM) to automatically and transparently migrate VMs during power disruptions to unaffected devices with systems such as VMware vMotion™ and Microsoft Live Migration
  • Execute graceful shutdown of computers and virtual machines/servers during an extended power outage.

Services and support
Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, Eaton has one of the top service models in the industry.

Three-year warranty
The 5P warranty covers both the UPS and the batteries for three years. No other manufacturer in the industry offers as comprehensive a warranty.

Specifications:

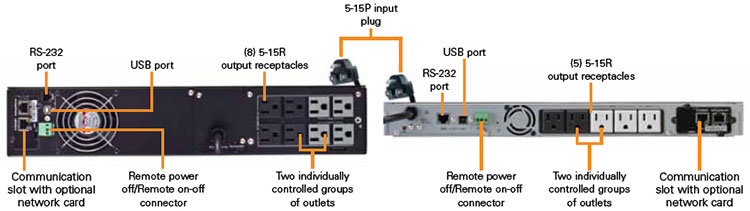

diagram


certifications

5P Tower Model Overview:

Product Snapshot
Power Rating 550-3000 VA
Voltage 120V and 208/230V
Frequency 50/60 Hz
Configuration Rackmount
Extended Runtime Capabilities No
UPS Models
Part Number Power Rating(VA/Watts) Input Plug Output Receptacles
5P Rackmount 2U, 120V, 50/60 Hz models
5P1500RT
1440 / 1440 5-15P (8) 5-15R
5P2200RT
1950 / 1920 5-20P (8) 5-20R
5P3000RT
3000 / 2700 L5-30P (6) 5-20R, (1) L5-30R
5P Rackmount 1U, 120V, 50/60 Hz models
5P550R
550 / 420 5-15P (5) 5-15R
5P750R
750 / 600 5-15P (5) 5-15R
5P1000R
1000 / 770 5-15P (5) 5-15R
5P1500R
1440 / 1100 5-15P (5) 5-15R
Catalog
Number
Power rating
(VA/watts)
Input Output Dimenstions
(HxWxD, in.)
Weight (lb.)

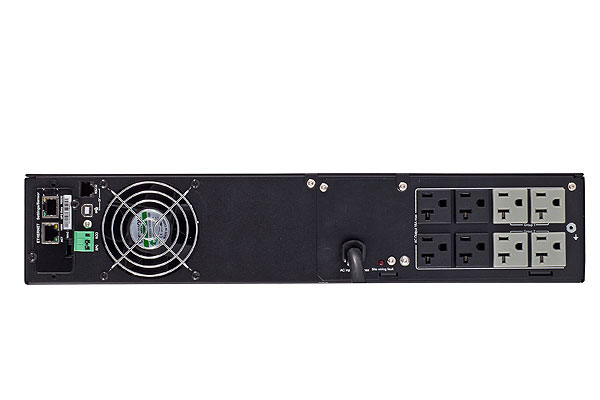

2U Rackmount, 120V, 50/60 Hz models*
5P1500RT 1440/1440 5-15P (8) 5-15R 3.4 (2U) x 17.4 x 20.6 65.0
5P2200RT 1950/1920 5-20P (4) 5-15R, (4) 5-20R 3.4 (2U) x 17.4 x 20.6 65.0
5P3000RT 3000/2700 L5-30P (3) 5-15R, (3) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 25.4 87.0

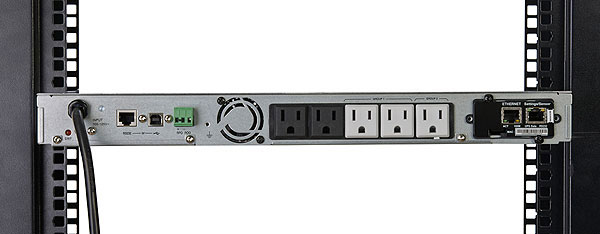

1U Rackmount, 120V, 50/60 Hz models
5P550R 550/420 5-15P (5) 5-15R 1.7 (1U) x 17.2 x 14.3 17.8
5P750R 750/600 5-15P (5) 5-15R 1.7 (1U) x 17.2 x 20.0 30.6
5P1000R 1000/770 5-15P (5) 5-15R 1.7 (1U) x 17.2 x 20.0 32.5
5P1500R 1440/1100 5-15P (5) 5-15R 1.7 (1U) x 17.2 x 21.8 43.5
*Catalog numbers that end in RT can be used in both rackmount or tower configurations

Documentation:

Download the Eaton 5P Rackmount Models UPS Brochure (PDF).

Pricing Notes:

5P 1440 VA Tower/Rack Mountable UPS
1.44 kVA/1.44 kW - 2UTower/Rack Mountable 0.05 Hour, 0.18 Hour Full Load, Half Load - 8 x NEMA 5-15R
#5P1500RT
List Price: $1,134.00
Our Price: $670.00
5P 1950 VA Tower/Rack Mountable UPS
1.95 kVA/1.92 kW - 2UTower/Rack Mountable 0.05 Hour, 0.15 Hour Full Load, Half Load - 8 x NEMA 5-20R
#5P2200RT
List Price: $1,732.00
Our Price: $1,023.00
5P 3000 VA Tower/Rack Mountable UPS
3 kVA/2.70 kW - 2UTower/Rack Mountable 0.07 Hour, 0.17 Hour Full Load, Half Load - 6 x NEMA 5-20R, 1 x NEMA L5-30R
#5P3000RT
List Price: $2,074.00
Our Price: $1,218.00
5P 550R 550VA Rack Mountable 1U LCD 120V
550 VA/420 W - 1U Rack-mountable 0.05 Hour, 0.13 Hour Full Load, Half Load - 5 x NEMA 5-15R
#5P550R
List Price: $550.00
Our Price: $312.00
5P 750R 1000VA Rack Mountable 1U LCD 120V
750 VA/600 W - 1URack-mountable 0.07 Hour, 0.20 Hour Full Load, Half Load - 5 x NEMA 5-15R
#5P750R
List Price: $825.00
Our Price: $470.00
5P 1000R 1000VA Rack Mountable 1U LCD 120V
1 kVA/770 W - 1U Rack-mountable 0.08 Hour, 0.20 Hour Full Load, Half Load - 5 x NEMA 5-15R
#5P1000R
List Price: $840.00
Our Price: $495.00
5P 1500R 1500VA Rack Mountable 1U LCD 120V
1.44 kVA/1.10 kW - 1U Rack-mountable 0.07 Hour, 0.23 Hour Full Load, Half Load - 5 x NEMA 5-15R
#5P1500R
List Price: $1,064.00
Our Price: $626.00
Eaton Network Card-MS
Provides real time monitoring and control across UPSs in your network
#Network-MS
List Price: $289.00
Our Price: $219.00
Eaton Relay Card- MS
Enables automatic shutdown and network monitoring of a UPS system
#Relay-MS
List Price: $100.00
Our Price: $77.00
Environmental Monitoring Probe
For use with all models (requires Network Card-MS)
#116750224-001
List Price: $220.00
Our Price: $167.00

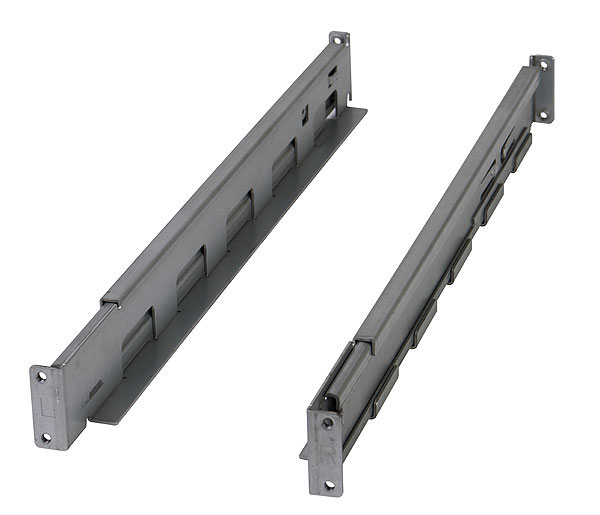

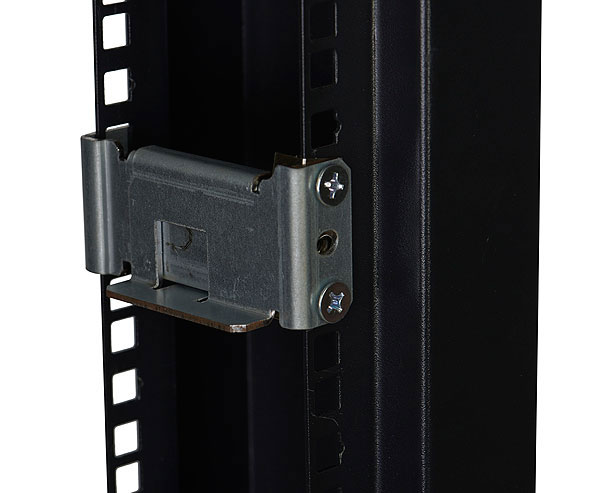

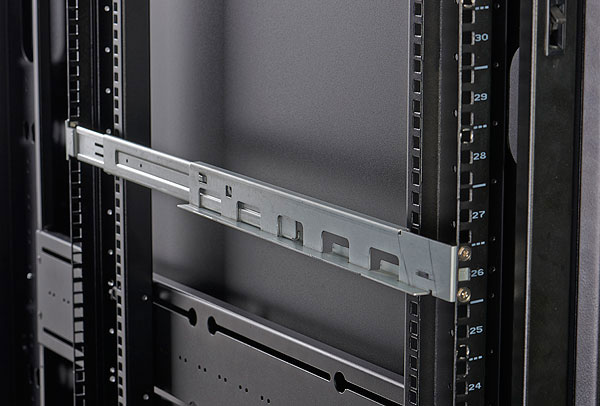

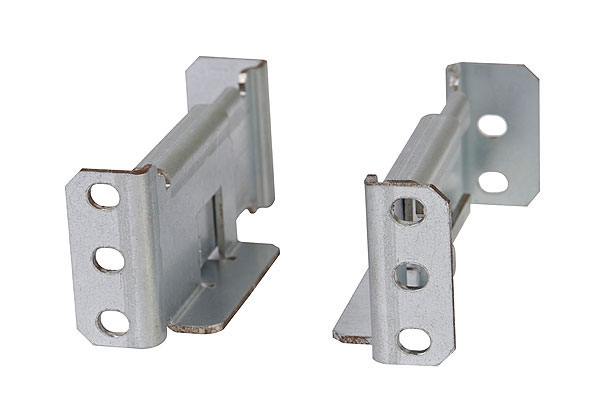

1U two-post rail kit (optional)
All 1U models except 5P550R
#RK2PA
List Price: $109.00
Our Price: $64.00
2U two-post rail kit (optional)
All 2U models
#103007018-5591
List Price: $109.00
Our Price: $64.00
HotSwap MBP for use with 5P550R, 5P750R, 5P1000R, 5P1500R, 5P1500RT
#EHBPL1500R-PDU1U
List Price: $242.00
Our Price: $185.00
HotSwap MBP for use with 5P2200RT
#EHBPL2000R-PDU1U
List Price: $289.00
Our Price: $221.00
HotSwap MBP for use with 5P3000RT
#EHBPL3000R-PDU1U
List Price: $420.00
Our Price: $316.00
