Eaton 5P UPS
Enterprise class battery backup in a space-saving tower design for network closets and computer rooms.

5pups

5P UPS Models
5S Tower, 120V, 50/60 Hz

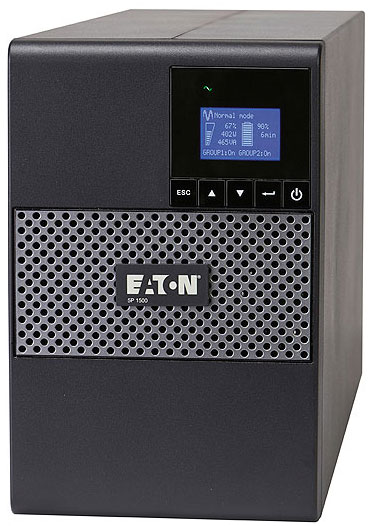

5P750 750VA Tower LCD
750 VA/600 WTower 0.07 Hour, 0.20 Hour Full Load, Half Load - 8 x NEMA 5-15R
#5P750
List Price: $495.00
Our Price: $282.00
5P1000 1000VA Tower LCD
1 kVA/770 WTower 0.08 Hour, 0.20 Hour Full Load, Half Load - 8 x NEMA 5-15R
#5P1000
List Price: $699.00
Our Price: $401.00
5P1500 1500VA Tower LCD
1.44 kVA/1.10 kWTower 0.07 Hour, 0.22 Hour Full Load, Half Load - 8 x NEMA 5-15R
#5P1500
List Price: $869.00
Our Price: $510.00
5P3000 3000VA Tower LCD
3 kVA/2.70 kWTower 0.07 Hour, 0.17 Hour Full Load, Half Load - 6 x NEMA 5-20R, 1 x NEMA L5-30R
#5P3000
List Price: $1,696.00
Our Price: $1,016.00

More pricing below, click here!

Overview:

The Eaton 5P Tower UPS delivers reliable enterprise class backup power with an efficiency rating of up to 99%. With ENERGY STAR® qualified models, the 5P's graphical LCD display allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Intelligent Power Software Suite, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.

Features

  • Space-saving:
    The Eaton 5P tower provides premium protection while conserving value space in multiple, slim tower designs.
  • Efficiency:
    The 5P provides industry leading efficiency of up to 99 percent.
  • Manageability:
    • UPS management:
      By integrating Eaton's free Intelligent Power® Software Suite, you can monitor and manage the power devices on your network.
    • Energy metering:
      The 5P meters energy consumption at the UPS level.

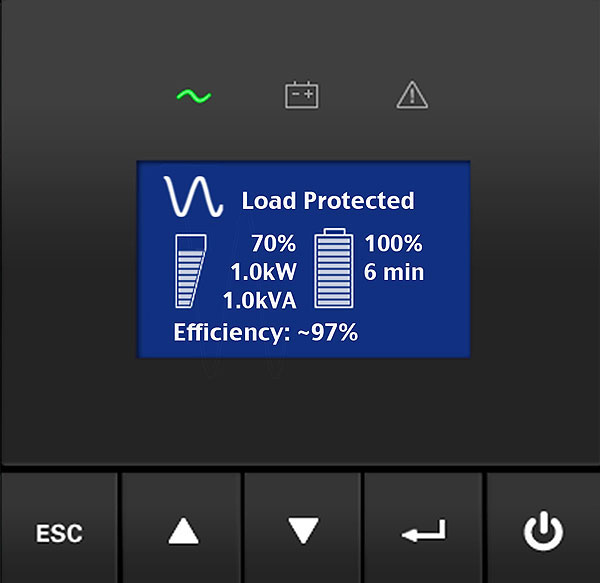

  • LCD display::
    Eaton's next-generation LCD offers a graphical interface which provides all critical UPS information in a single screen view.
  • More power:
    The 5P protects more devices by providing 20 percent more wattage compared to traditional UPSs.

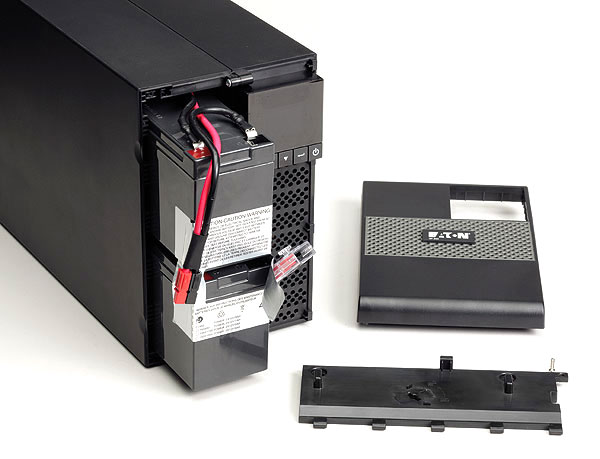

  • Battery life:
    Eaton's exclusive ABM® technology increases battery service life by 50 percent.
  • ENERGY STAR®:
    5P 2200 and 3000 VA tower models are ENERGY STAR® qualified. ENERGY STAR helps consumers save money and protect the environment through energy efficient products and practices.

Intelligent Power Software Suite

By integrating the software with the Eaton 5P, you can:

  • Seamlessly integrate with VMware's vCenter Server™ virtualization management solution, as well as virtualization platforms such as Citrix® XenServer, Microsoft SCVMM™, Red Hat® and other Xen® open source platforms.
  • Initiate live migration of virtual machines (VM) to automatically and transparently migrate VMs during power disruptions to unaffected devices with systems such as VMware vMotion™ and Microsoft Live Migration
  • Execute graceful shutdown of computers and virtual machines/servers during an extended power outage.

Services and support
Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, Eaton has one of the top service models in the industry.

Three-year warranty
The 5P warranty covers both the UPS and the batteries for three years. No other manufacturer in the industry offers as comprehensive a warranty.

Specifications:

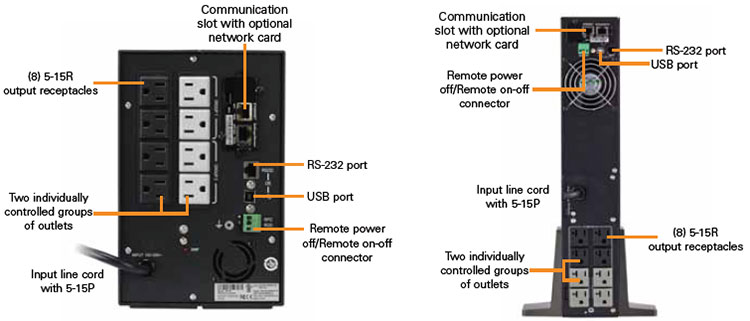

5p-rear-panels

certifications

5P Tower Model Overview:

Product Snapshot
Power Rating 750-3000 VA
Voltage 120V, 208/230V
Frequency 50/60 Hz
Configuration Tower
Extended Runtime Capabilities No
UPS Models
Part Number Power Rating(VA/Watts) Input Plug Output Receptacles
5P750
750/600 5-15P (8) 5-15R
5P1000
1000/770 5-15P (8) 5-15R
5P1500
1440/1100 5-15P (8) 5-15R
5P2200
1950/1920 5-20P (8) 5-20R
5P3000
3000/2700 L5-30P (6) 5-20R, (1) L5-30R
Catalog
Number
Power rating
(VA/watts)
Input Output Dimenstions
(HxWxD, in.)
Weight (lb.)
Tower 120V, 50/60 Hz models
5P750 750/600 5-15P (8) 5-15R 9.1 x 5.9 x 13.6 22.7
5P1000 1000/770 5-15P (8) 5-15R 9.1 x 5.9 x 13.6 24.4
5P1500 1440/1100 5-15P (8) 5-15R 9.1 x 5.9 x 17.5 35.3

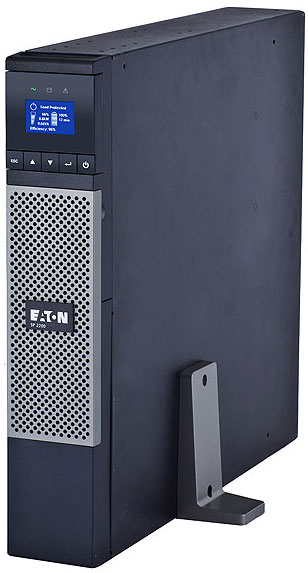

5P2200 1950/1920 5-20P (4) 5-20R, (4) 5-15R 3.4 x 17.4 x 20.6 65.0
5P3000 3000/2700 L5-30P (6) 5-20R, (1) L5-30R 3.4 x 17.4 x 25.4 87.0

Documentation:

Download the Eaton 5P UPS Brochure (PDF).

Pricing Notes:

5S Tower, 120V, 50/60 Hz
5P750 750VA Tower LCD
750 VA/600 WTower 0.07 Hour, 0.20 Hour Full Load, Half Load - 8 x NEMA 5-15R
#5P750
List Price: $495.00
Our Price: $282.00
5P1000 1000VA Tower LCD
1 kVA/770 WTower 0.08 Hour, 0.20 Hour Full Load, Half Load - 8 x NEMA 5-15R
#5P1000
List Price: $699.00
Our Price: $401.00
5P1500 1500VA Tower LCD
1.44 kVA/1.10 kWTower 0.07 Hour, 0.22 Hour Full Load, Half Load - 8 x NEMA 5-15R
#5P1500
List Price: $869.00
Our Price: $510.00
5P3000 3000VA Tower LCD
3 kVA/2.70 kWTower 0.07 Hour, 0.17 Hour Full Load, Half Load - 6 x NEMA 5-20R, 1 x NEMA L5-30R
#5P3000
List Price: $1,696.00
Our Price: $1,016.00
Network Card-MS
Provides real time monitoring and control across UPSs in your network
#Network-MS
List Price: $289.00
Our Price: $219.00
Relay Card - MS
Enables automatic shutdown and network monitoring of a UPS system
#Relay-MS
List Price: $100.00
Our Price: $77.00
Environmental Monitoring Probe
For use with all models (requires Network Card-MS)
#116750224-001
List Price: $220.00
Our Price: $167.00
